DS029Q Electronic Shelf Label - 2.9" Color E-ink

Homepage/DS029Q Electronic Shelf Label - 2.9" Color E-ink

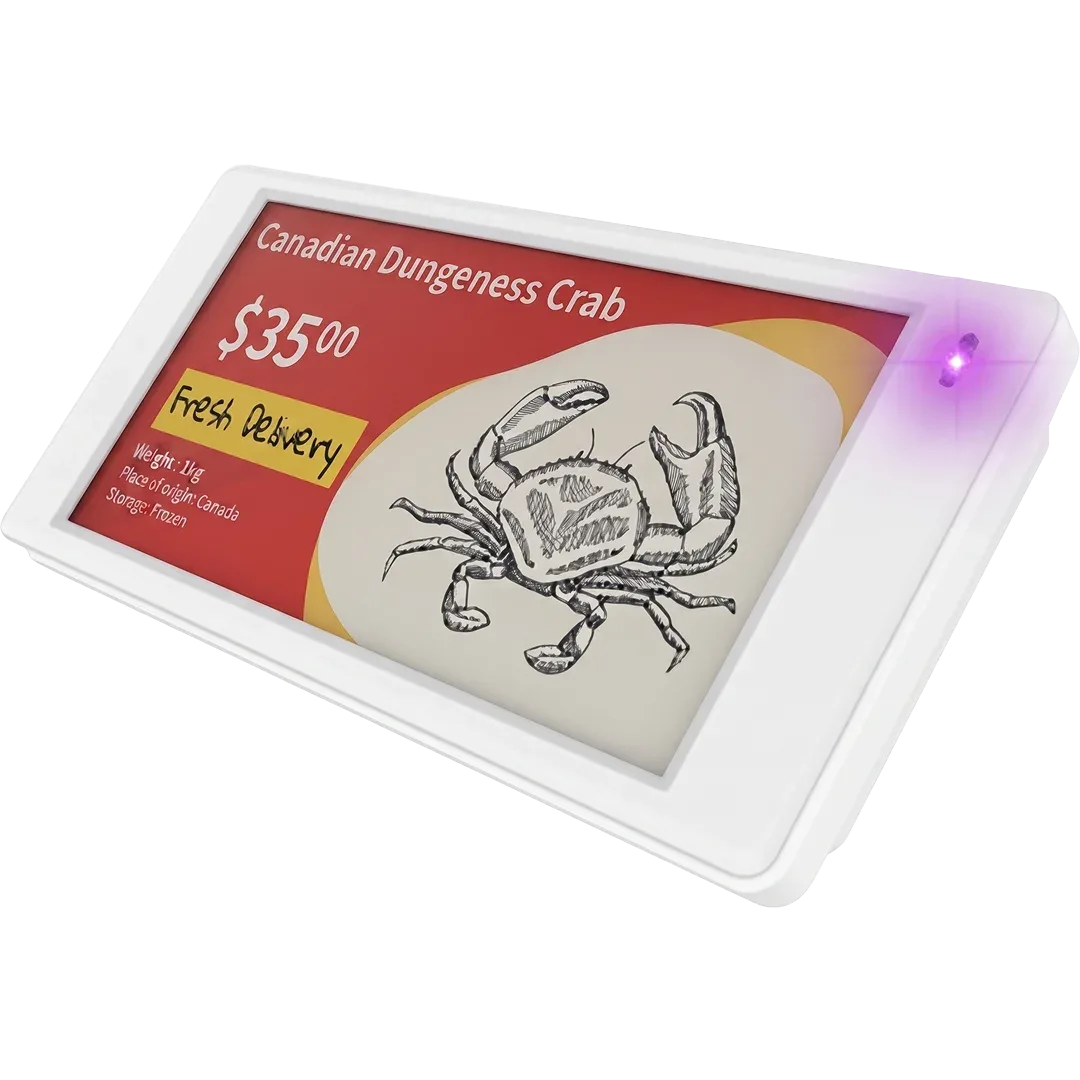

DS029Q Electronic Shelf Label

DS029Q Electronic Shelf Label

DS029Q is a super-thin ESL label with a 2.9-inch display. Its Bluetooth Low Energy 5.0 technology and slim 9.8 mm design deliver secure, fast data transfer. Its four-color e-ink display provides a paper-like, full-graphic image, and its 2.5D transparent cover offers a viewing angle of approximately 180°.

  • Four-Color Display (Black / White / Red / Yellow)
  • 296 × 128 px Resolution · 112 dpi
  • 1200 mAh Battery (CP502440) · 5-Year Battery Life (at 5 updates per day)
  • 60–80 m Transmission Range (open area)
Get a Quote Contact Us
2.9" MULTI-COLOR DISPLAY

DS029Q displays your product information clearly and prominently with its 2.9-inch EPD (e-ink) screen, which supports black, white, red, and yellow colors. Its 296 × 128 px resolution and 112 dpi pixel density deliver high readability for text and graphics. With a 66.6 × 28.8 mm display area and a weight of 35.6 g, it features an ultra-thin 9.8 mm design.

5-YEAR BATTERY LIFE WITH POWERFUL 60–80 M CONNECTIVITY

Powered by a CP502440 battery with a 1200 mAh capacity, DS029Q offers up to 5 years of battery life at 5 updates per day. Thanks to the Bluetooth Low Energy 5.0 protocol and a transmission range of up to 60–80 meters, it maintains uninterrupted communication with the gateway. It delivers reliable performance at 50% ± 20 RH humidity and operating temperatures between 0°C and 40°C.

IP65 PROTECTION AND CERTIFICATIONS

With its IP65 protection rating, NFC capability, and LED location indicator, DS029Q offers various mounting options — such as shelf rails or adhesive mounting — with customizable templates. Made from AC2300 material with a white-colored body and measuring 91.5 × 41 × 9.8 mm, the device is FCC and CE certified.
