Electronic Shelf Label Systems
Electronic Shelf Label and Pick-to-Light System for Warehouses
Show the pick list on the shelf and confirm the picked item with a button. Cut down paper lists and picking from the wrong location.
VyTag Selection for Warehousing and Logistics
In a warehouse the system has three parts: the label on the rack, the gateway that covers the aisles, and VyTag Cloud Software that manages the work order.
Label
- VyTag Pro 2.9" with Button
- VyTag Slim 4.3" Bar Type
- VyTag Slim 4.2"
- VyTag Pro 2.1" Freezer
Gateway
- Coverage is calculated against racking density; heavy metal racking increases the device count
- Manages up to 3,000 labels across 300 m²
- Passes the update it receives over the network to the labels via Bluetooth
- Installed with a single cable over PoE
Software
- Reads your price source and sends the update to the gateway
- This is where you design the label templates
- Every branch on one panel for multi-store businesses
- Send history and battery status are monitored
Where is it used in the warehouse?
Tap an area on the plan to see which label sits there and where the gateway covers from.

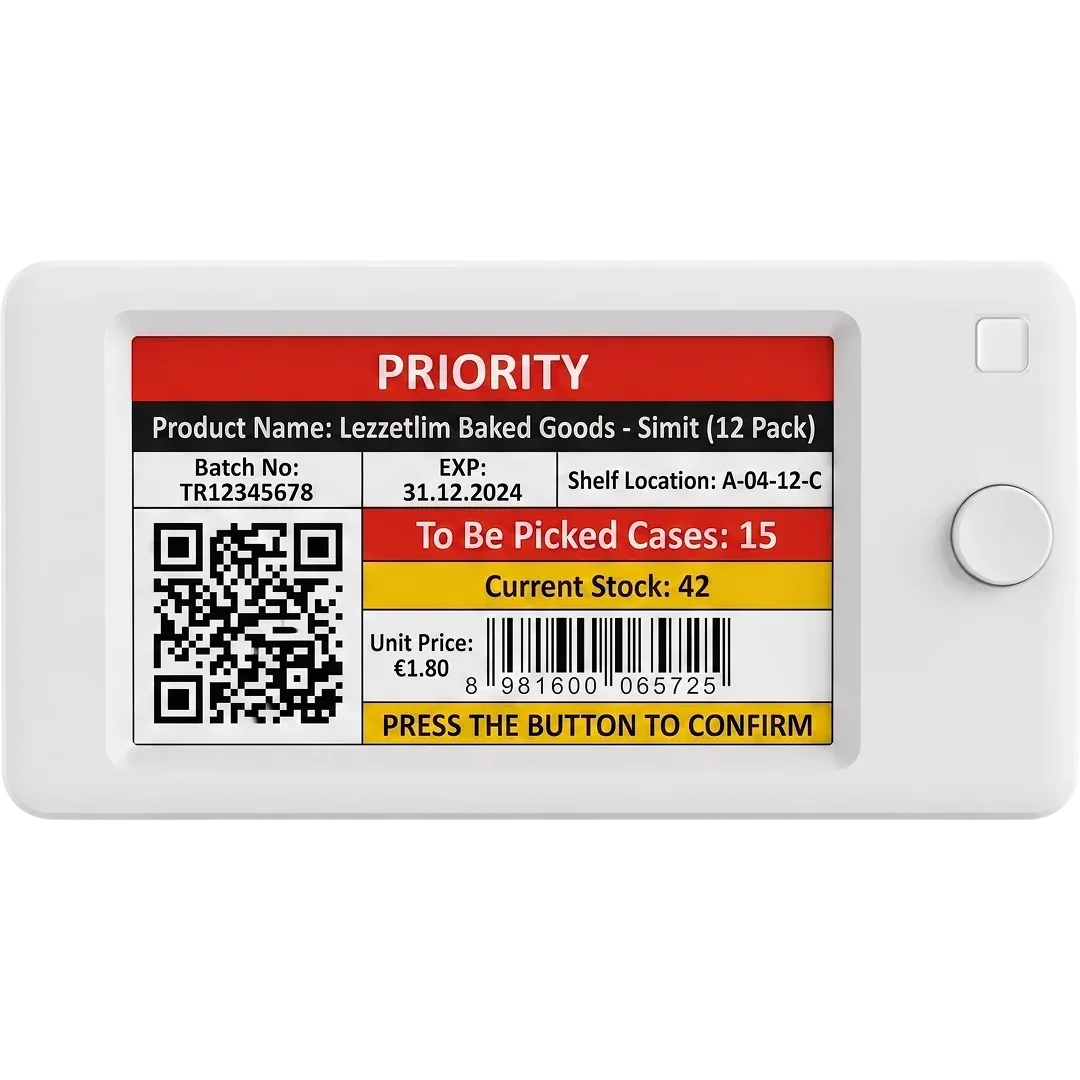

Order picking aisles (pick-to-light)The main use of the system. The button and LED label shows the picking order on the shelf itself; this is where e-commerce and piece-picking warehouses gain the most.

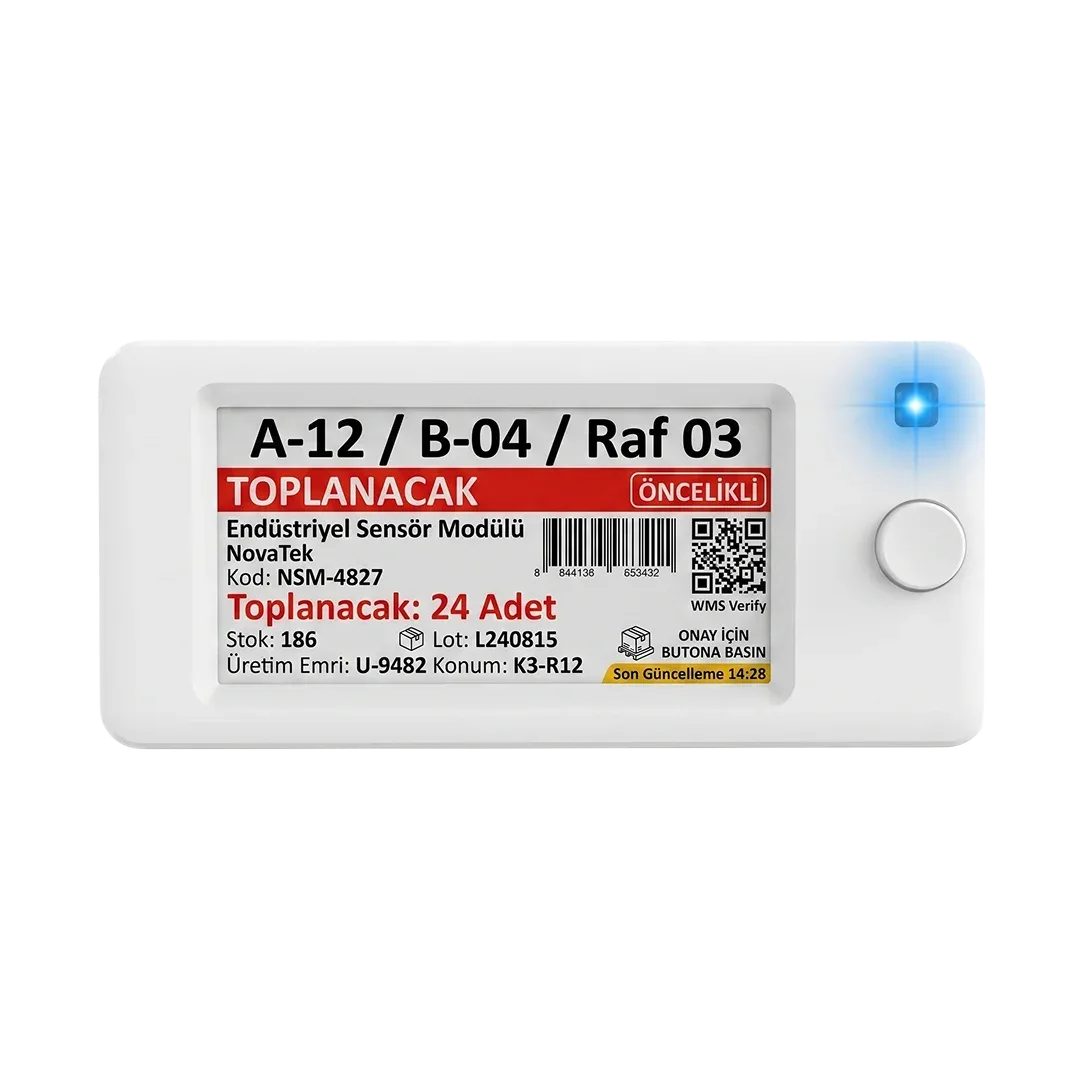

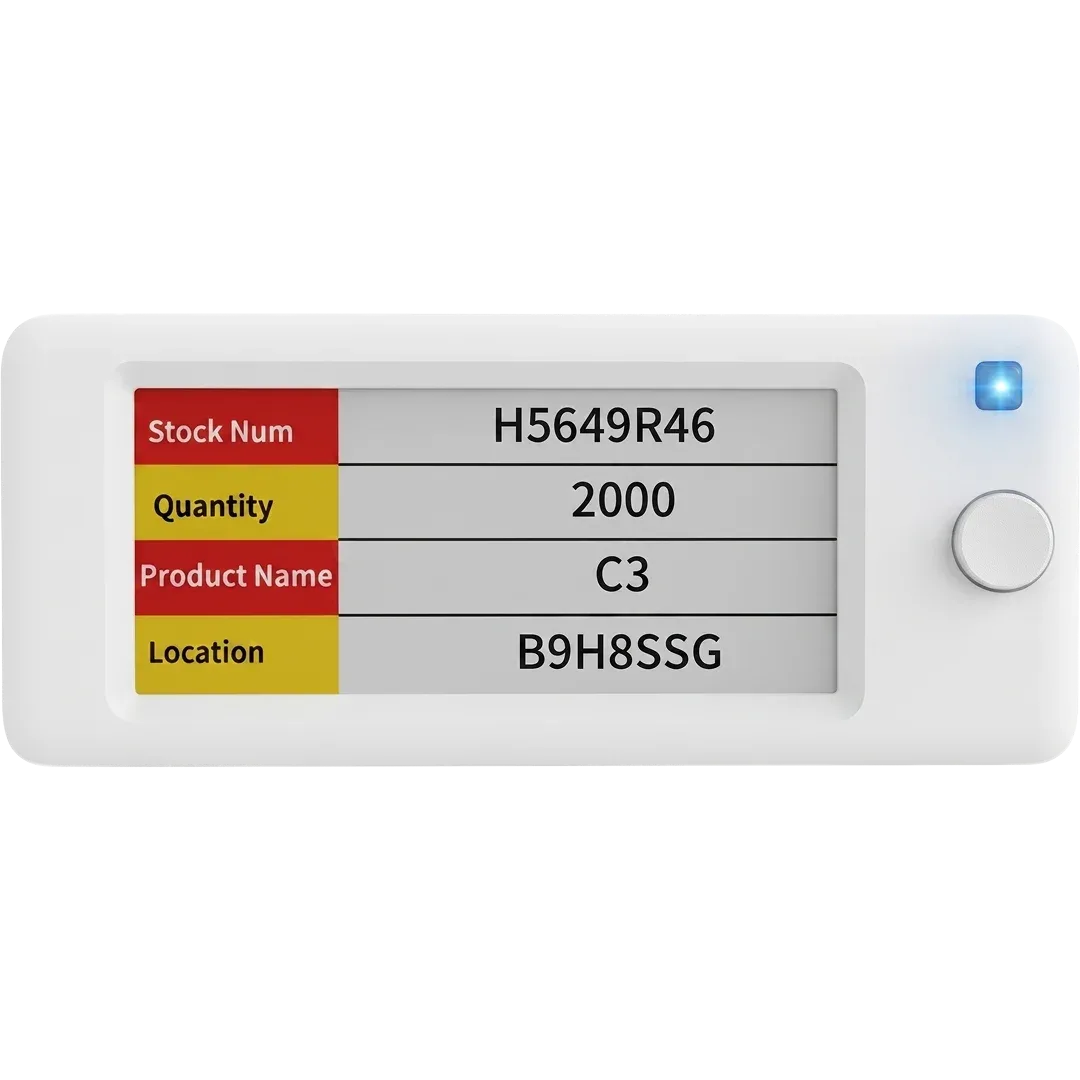

Location and pallet identityLocation code, product name and stock detail on the shelf. When the layout changes, the label turns from the software.
Cold stores and freezer aislesWhere a standard label does not work. The Pro 2.1" Freezer is IP67 rated and operates down to −25 °C.
Dispatch and goods-in areasDoor, ramp and waiting-area information is handled with the 7.5" info display; no printed signage is needed.

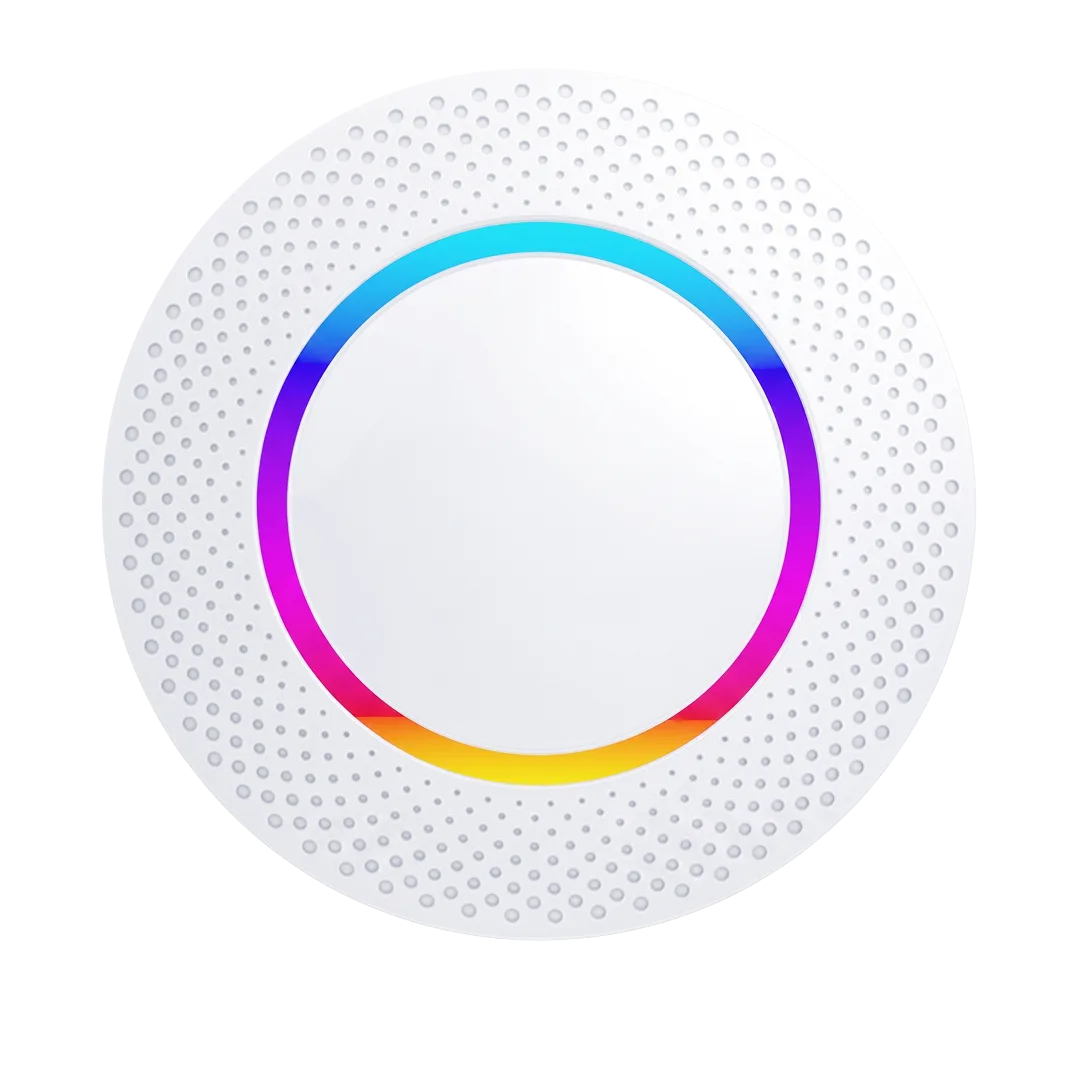

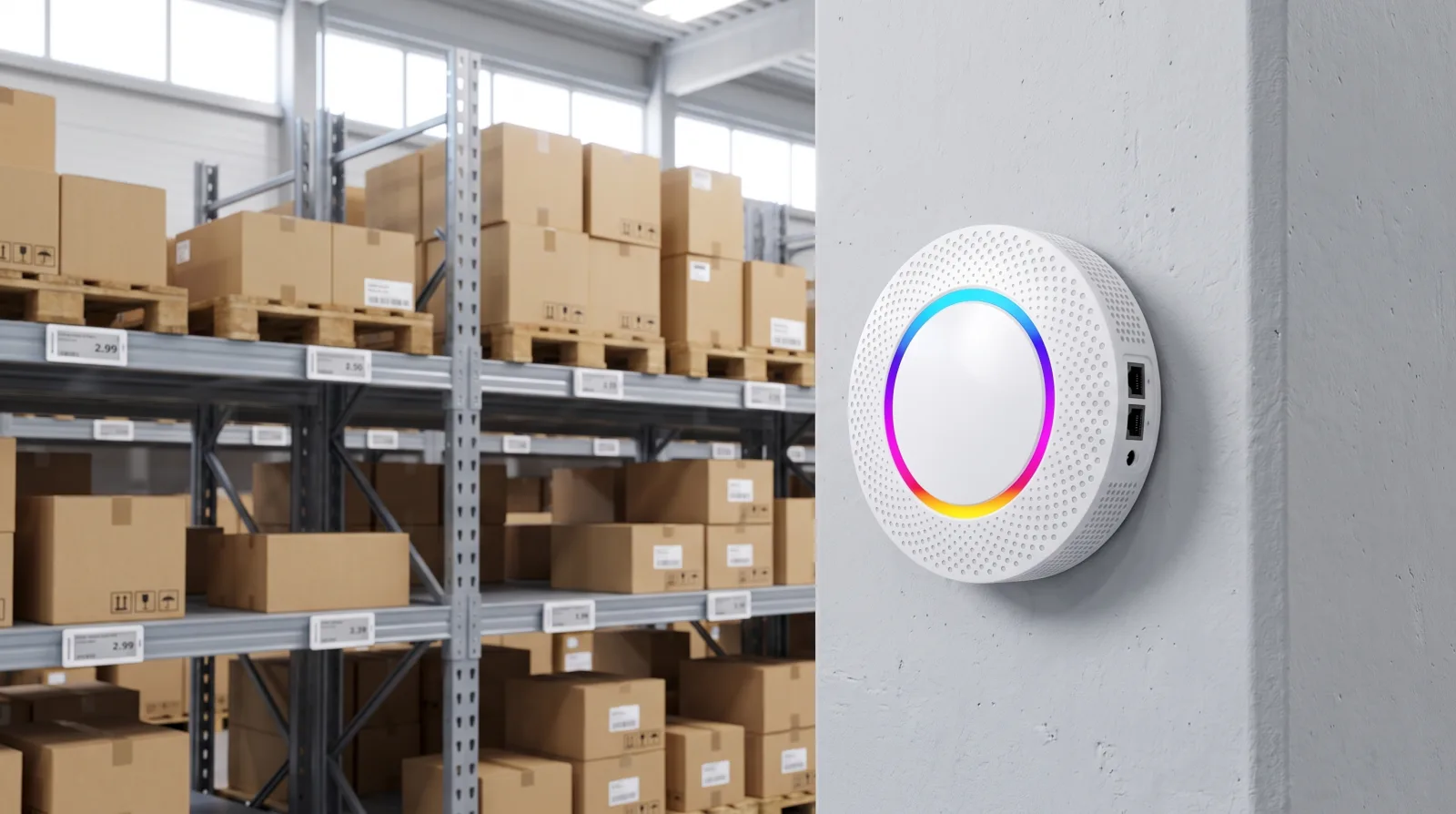

VyTag GatewayThe gateway covering the area distributes the update from the software to every label on the shelf. One device manages up to 3,000 labels across 300 m²; larger areas use more than one gateway.
How It Looks on the Shelf
Your Brand
Label Templates Designed for Your Business
You decide what goes where on the label. Your warehouse template is set up once; the location code, product name and stock field sit in the same place on every rack.
- Your logo and brand colours appear on the label
- You decide where the product name, price, unit price, barcode and QR sit
- A separate template is defined for picking and dispatch; when the job ends the label returns to its location-identity template.
Advanced Technology & Regulatory Compliance
VyTag Electronic Shelf Label Systems delivers reliable, long-lasting operation through advanced technology and standards-compliant design.
Make Your Hidden Costs Visible
What does a warehouse ESL system cost? Five items decide the cost: the number and size of the labels, the colour requirement, the number of gateways, the scope of the software and integration, and the mounting parts. Tell us how many aisles and shelf bays you have, and we will break it down item by item.
ESL System FAQ for Warehousing and Logistics
Frequently asked questions about installing and using Electronic Shelf Label and Pick-to-Light System for Warehouses.
The cloud software works over WMS and ERP connections and an API. The picking order still originates in your system; VyTag shows that order at the shelf and sends the button confirmation back. The scope of the integration is assessed against the software you use.
Yes. The Pro 2.9" with button is used in picking aisles and the Slim 4.2" or 4.3" for location identity; all of them run on the same gateway and the same panel.
Metal density affects coverage. That is why the gateway count is set by the coverage measured during the survey, not by square metres.
Yes. The VyTag Pro 2.1" Freezer is IP67 rated, operates down to −25 °C and has a replaceable battery.
The label count matches the number of shelf bays. A pick-to-light installation covers only the picking aisles; a location-identity installation covers every bay. The two can also be combined.
