Customer Paging Devices

MC-S10 Customer Paging System

It tells the customer their order is ready through their pager — no queueing.

Get a Quote Contact Us

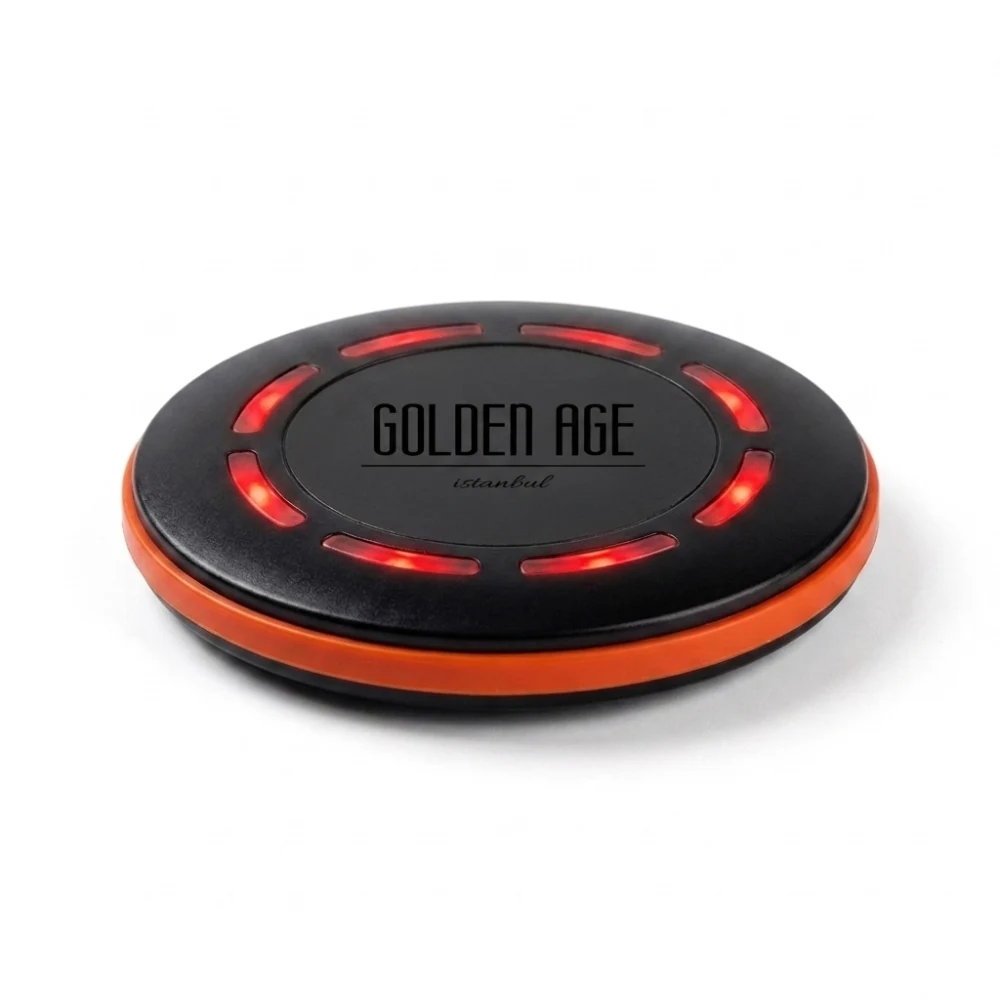

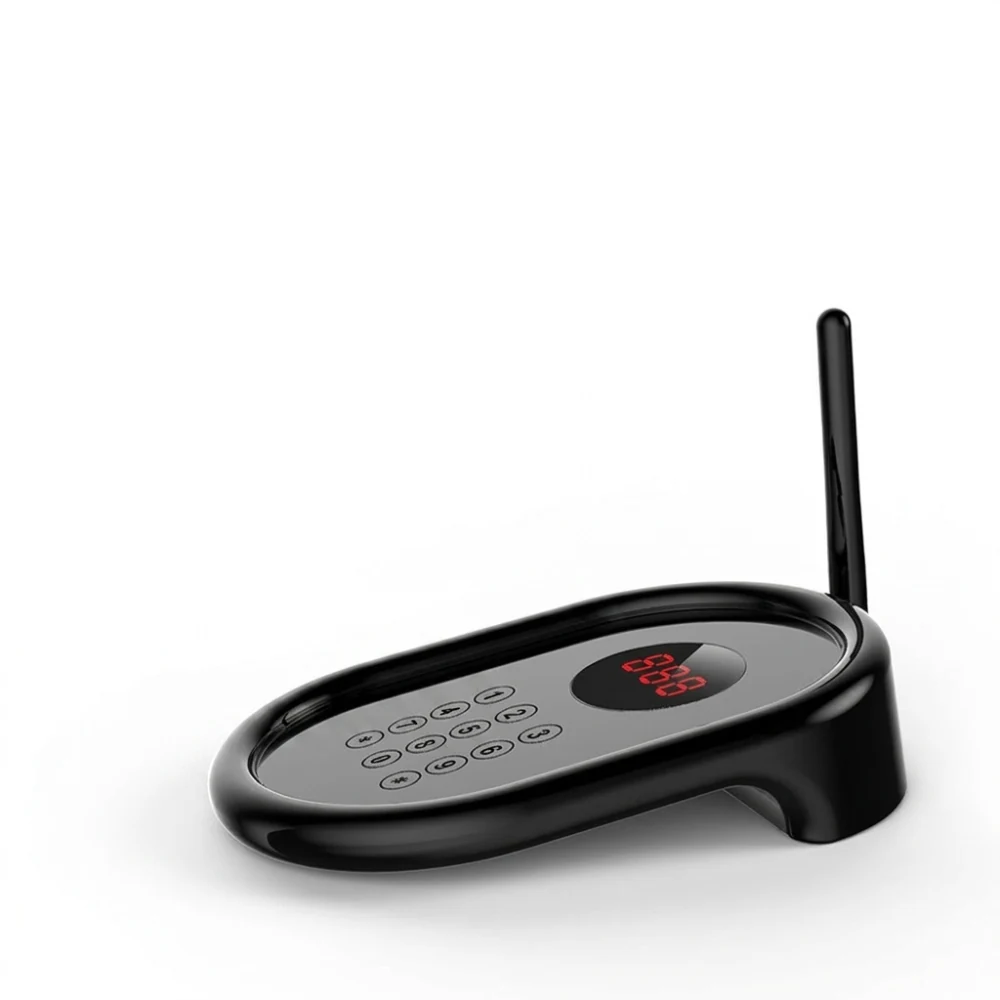

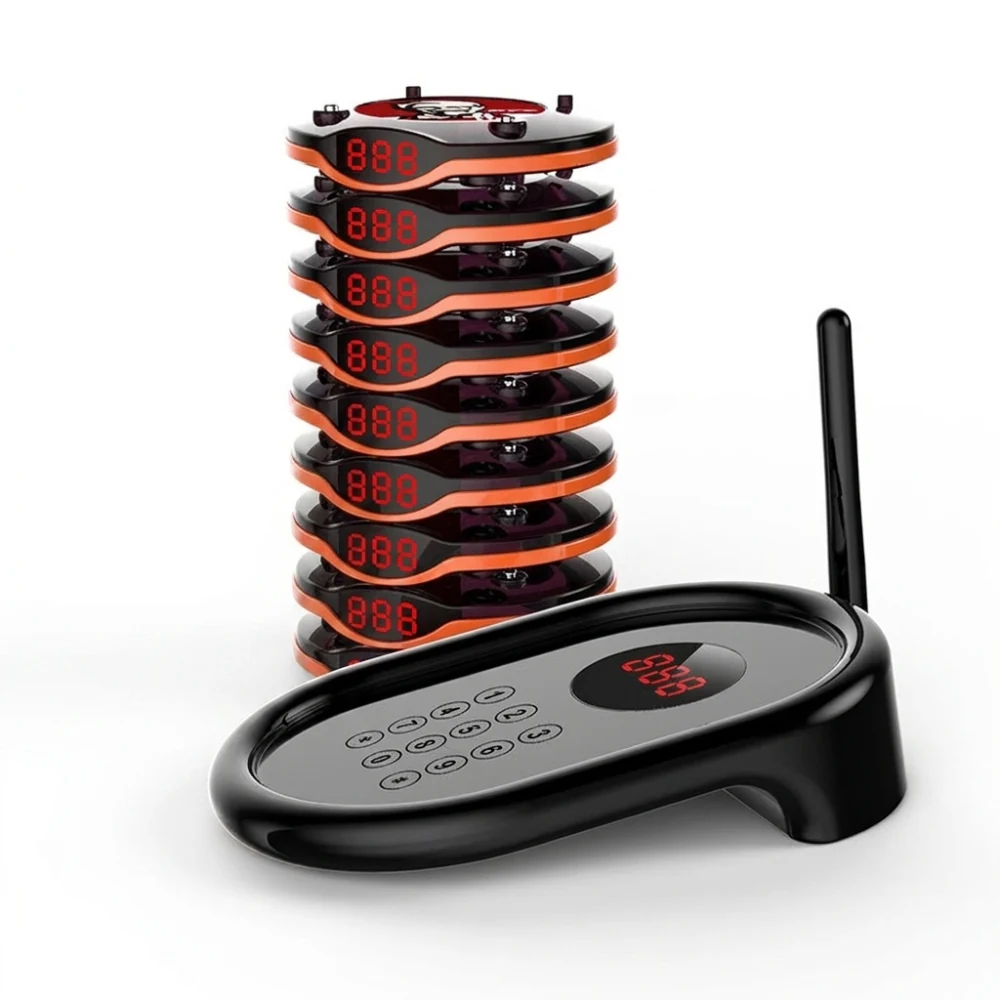

The complete Vycall MC-S10 customer paging set — transmitter, ten pagers and charging disc The Vycall MC-S10 transmitter keypad, angled view The touch keypad and display of the Vycall MC-S10 transmitter Vycall MC-S10 pagers stacked on the charging disc A close-up of a Vycall MC-S10 pager — the printed logo surface and the illuminated ring
500 m Open-area coverage
10 pagers Standard set
998 pagers Capacity per transmitter

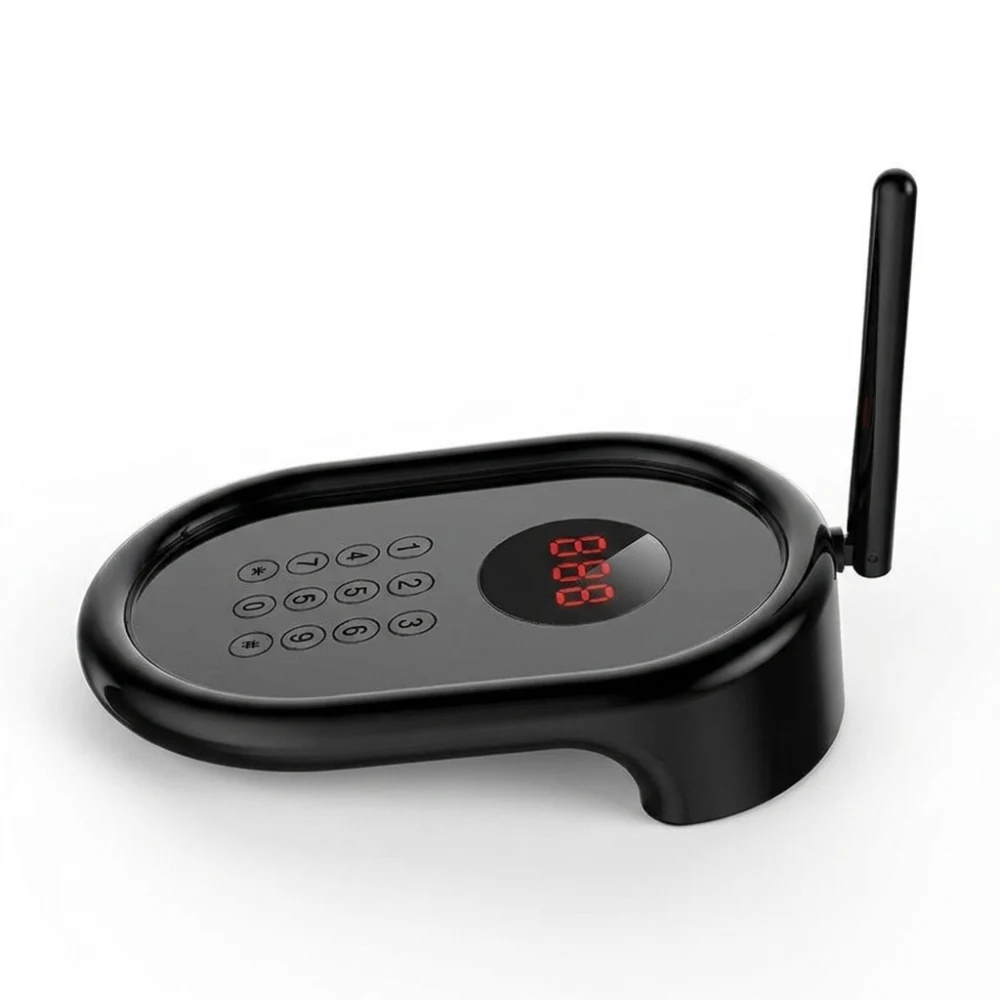

The touch keypad of the MC-S10 transmitter

How It Works

How a Customer Call Progresses

The customer is handed a pager when the order is taken. When it is ready, the pager number is entered on the counter transmitter; the pager vibrates, sounds and lights up.

  • A transmitter with a touch keypad — black or white
  • Cancel a call from the pager with one touch
  • Switch off every pager at once from the transmitter
  • Your logo can be printed on the pager and transmitter surface
Compatibility

Which Buttons It Works With

The MC-S10 works with its own pagers; if more coverage is needed it is extended with a signal repeater.

Vycall R1000 signal repeater R1000 Signal Repeater
Technical Summary

Technical Specifications

Values are taken from the product master data.

Communication technologyRF 433.92 MHz
Coverage500 m in open areas
Indoor coverageThrough up to 4–6 walls
System capacityUp to 998 pagers per transmitter
Standard set1 × transmitter · 10 × pagers · 1 × charging station
ExpansionMC-S10/E set · 10 pagers + 1 charging disc
ChargingUp to 15 pagers at once
Pager battery3.7V 300 mAh
Standby time30 hours
Transmitter power input12V / 2A
Transmitter size174 × 115 × 43 mm
Pager sizeØ80 × 15 mm
Pager durabilityWaterproof · shock-absorbing rubber edge
CustomisationLogo printing on the pager and the transmitter
CertificationCE · RoHS · RED 2014/53/EU
Warranty2-year limited warranty
DatasheetPDF · MC-S10 datasheet User manualInstallation and pairing
Use Cases

Where It Is Used

The system works at any counter where a customer waits their turn.

Waiter Calling System Waiter Calling SystemService called from the table with one touch Factory and Forklift Calling System Factory and Forklift Calling SystemStoppage alerts on the line, direction on the floor Staff and Executive Calling System Staff and Executive Calling SystemOne-touch calling in offices and executive rooms
Don’t see your industry? Contact Us
Vycall FAQ

Frequently Asked Questions

The questions we hear most before a quote.

The standard set is one transmitter, ten pagers and one charging station.

Yes. Adding MC-S10/E expansion sets (10 pagers + 1 charging disc) takes the number of pagers managed from one transmitter up to 998.

Yes. Your logo can be printed on the pager and transmitter surface.

An R1000 signal repeater is added. Coverage of 500 metres in open areas is extended with the repeater.

The price depends on how many points are installed and which receiver type you choose. Fill in the form and our team will prepare a quote for your business.
